1.9 CuFt Vacuum Oven Bundle - 12 Shelf

Product Code: DZF-6050-BUNDLE

Availability:In stock

$2,100.00 $1,800.00 1,800.00

Qty

The DZF-6050 features a 1.9 Cu-Ft stainless steel chamber, large enough to accommodate large samples on multiple shelves. A highly accurate heating rate and wide operating temperature allow for precise extraction and processing. This new model featured integrated LED lighted and capability to hold up to 12 shelves. Controlling the DZF oven is a breeze with the easy-to-read digital control panel which displays temperature and time control settings. A large Hg vacuum gauge adorns the front of the oven allowing for quick easy vacuum level detection up to 30" Hg. On the front of the oven you will find the vacuum control valve and a vacuum evacuation valve that let you control the amount of vacuum in the chamber accurately.

The large access door on the front of the oven opens 180 degrees, offering plenty of space for placing and removing samples. Each door is fitted with a 1/2" safety glass so you can view samples while they are extracting/degassing. A tight seal around the perimeter of the door ensures a solid vacuum with no loss of suction. The oven includes all 12 shelves at no extra cost. Our shelves are made of high-grade aluminum, and feature raised edges on all four sides so your product stays on the shelf.

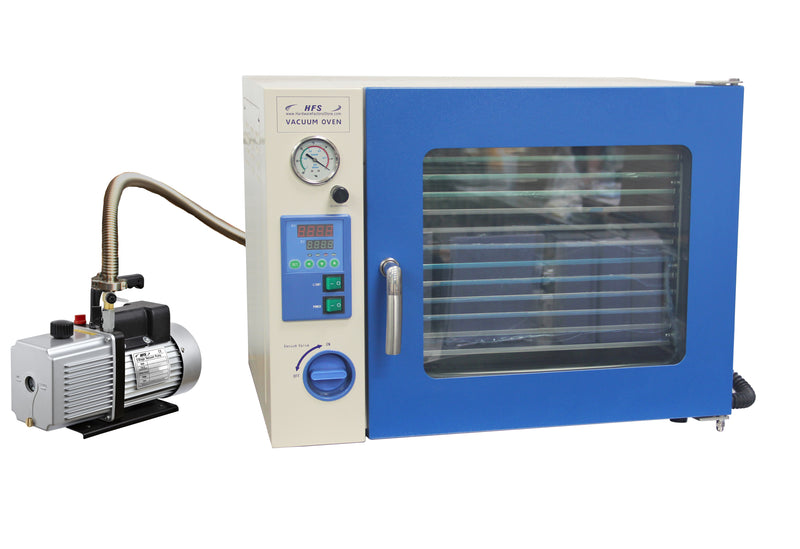

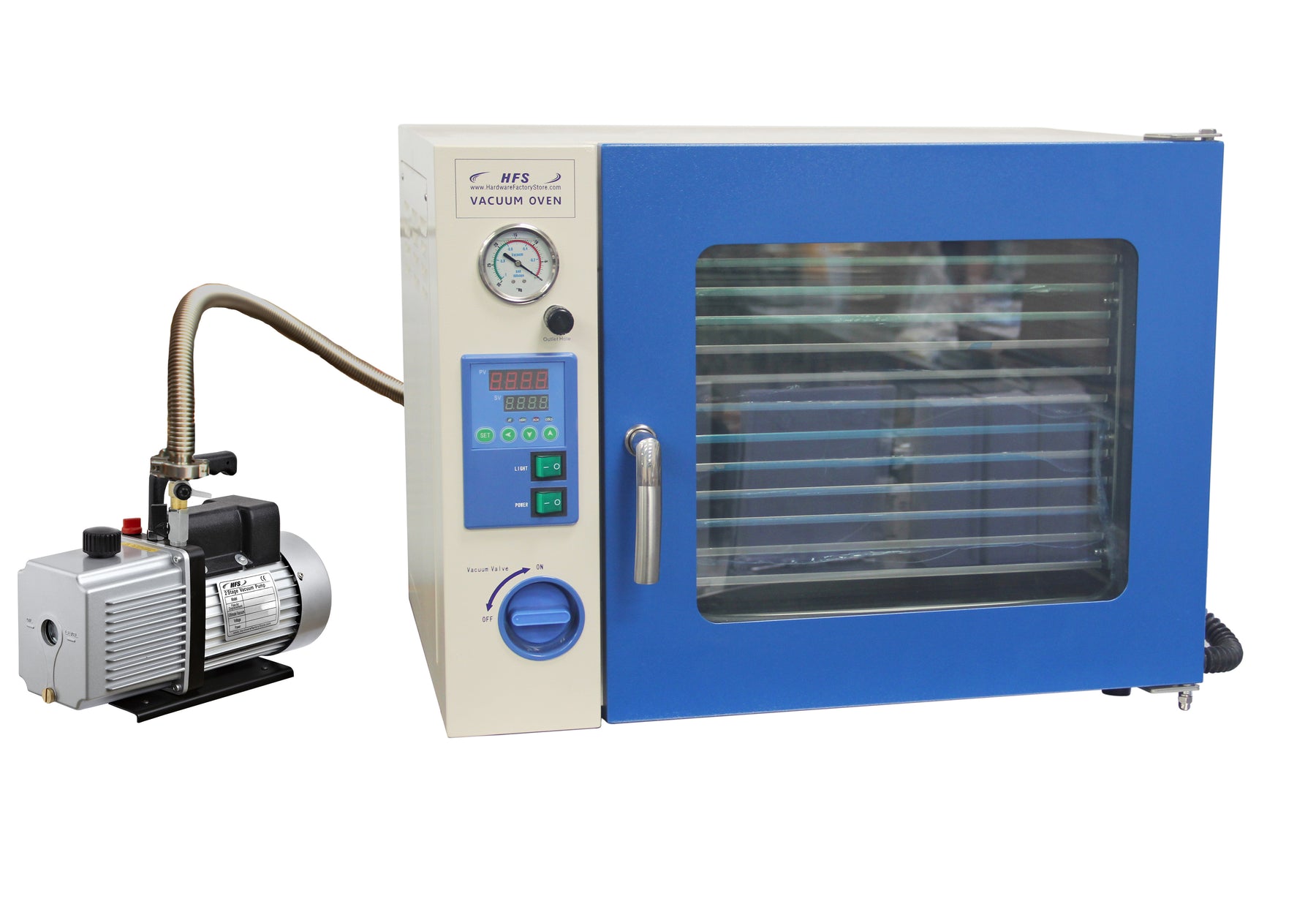

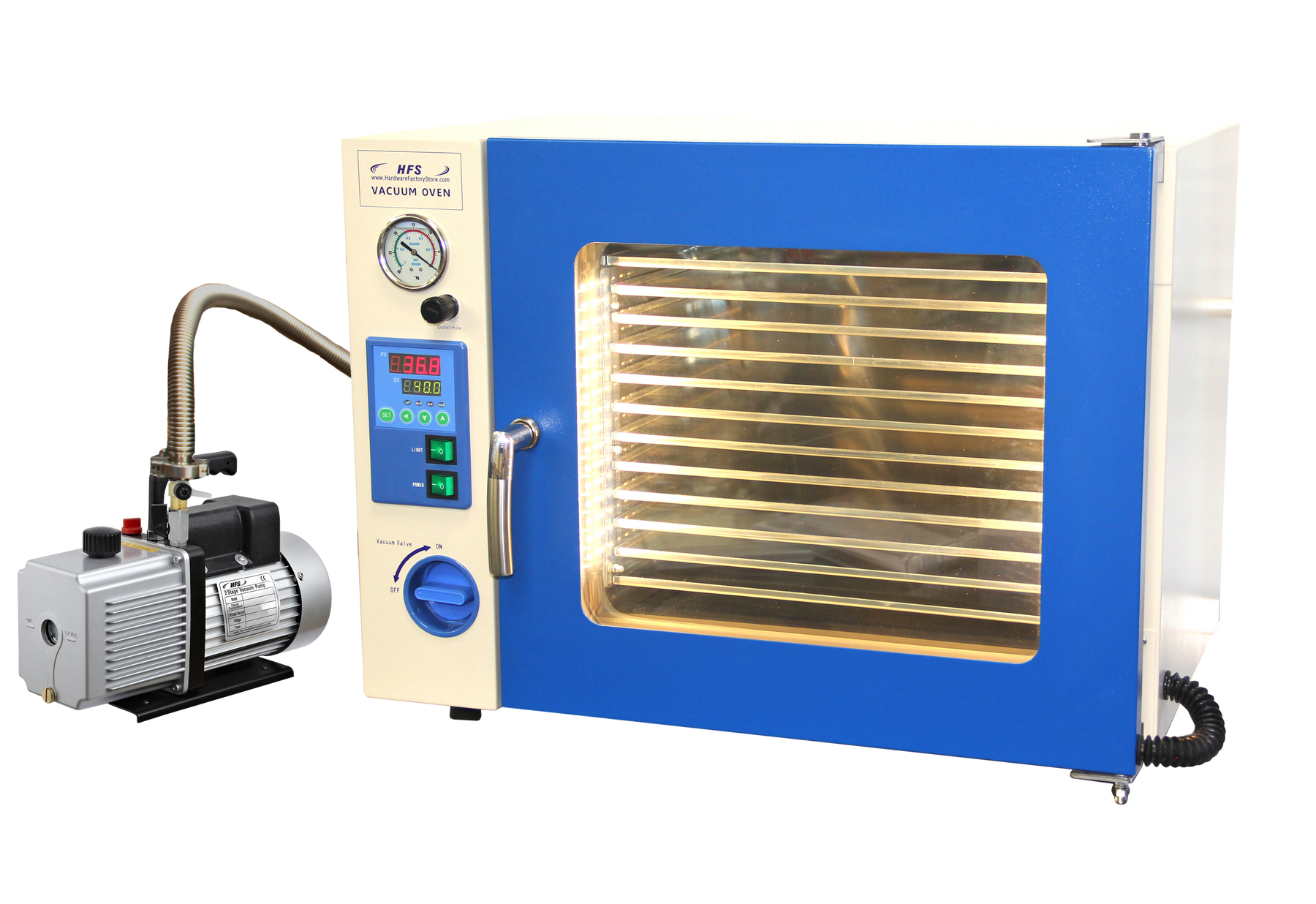

This listing includes the 1.9 oven, a vacuum pump, and all necessary fittings to connect them. The pump is our super-popular VP2200, dual stage 12CFM oil filed pump.

The DZF oven bundle is extremely easy to use, and is ready to go right out of the box. Very easy to put together and start using. Includes all necessary parts for a full system.

Features
• 0-30" Hg gauge for quick vacuum level observation
• 1/2" safety glass viewing window
• Integrated LED Lighting
• Digital temperature and timer control with +- 1 degree accuracy
• Stainless Steel inner chamber
• 4-Sided Heating - Left, Right, Bottom, Top
• Standard KF-25 fitting for easy connectivity
• 12 solid aluminum shelves included
• KF25 clamp, centering ring, KF25 stainless bellows hose 40"
• VP2200 - 12CFM Dual Stage Vacuum Pump
• No assembly required
• 30 day Money-Back Guarantee
• 1-Year Warranty

Included Items
• DZF-6050 Oven
• Owner's Manual
• 2 x KF-25 Clamp, 2 x Centering Ring, KF25 40" Stainless Bellows hose
• 12 Solid Aluminum Shelves
• VP2200 - 12CFM Dual Stage Vacuum Pump


Standards in Manufacturing
• CE Certified
• ENISO12100-1:2003, ENISO12100-2:2003, EN1050:1996
• EN294:1992, EN418:1992, EN60204-1:2006

Specifications

Chamber Dimensions (WxDxH) 16" x 14.5" x 14"
Chamber Material Stainless Steel
Door Gasket Material Silicone
Timer Range 1-9999 minutes
Heater Power 1200 watts
Max Vacuum 30" Hg (133 Pa)
Power Supply 110V 50/60Hz 1-PH 13.6A
Power Cord Standard US 3-Prong
Safety Designs Circuit Breaker, Overheat Warning
Shelves 12 Solid Shelves Included
Shipping Dimensions (WxDxH) 33" x 27" x 28"
Shipping Weight 220 Lbs
Temperature Range Room Temperature to 215°F
Temperature Accuracy +/- 1°F
Temperature Units Farenheit
Unit dimensions (WxDxH) 28" x 22" x 22"
Weight 170 Lbs
Vacuum Fitting KF-25



Shipping

Due to the weight of the 1.9 ovens they must be shipped with a freight company. Be sure to provide a working contact phone number for delivery.It may take more than one business day for the freight company to pick this oven up, which is beyond our control.



Our competitors charge 15-25% restocking fees for returned items, we are the only extraction equipment supplier with a no-hassle 100% money back return guarantee!

If you decide you no longer want your item we make it easy to request a return, send it back, and get a refund. As long as your return matches the requirements below, simply contact our support team to return your order. Please note return shipping is not provided, and original shipping fees cannot be refunded.

  • Have proof of purchase, such as your order number.
  • Items must be in new/un-used condition, including all parts and original packaging.
  • Returns must be received within 30 days of placing the order
  • Solvents and chemical cannot be returned for any reason



For our complete return policy please click here.
