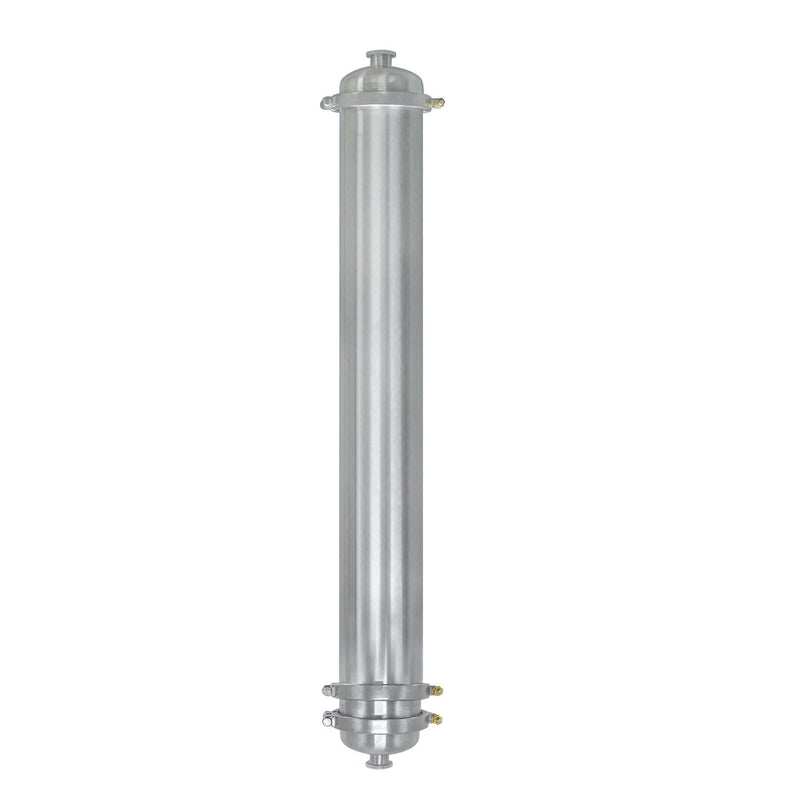

Sanitary SS 304 3A -2LBS Update Kit Closed Loop Extractor 6IN


Size: 6x48''



Closed Loop Reclamation Extraction System (Comes with 1 yr. Limited warranty) 150 Micron Mesh Blast tube Filter Nitrile Buna-N Gaskets are designed for Oil Processing Temp range -30-200F full set of extra gaskets including the 150 micron mesh gasket for the blast tube is included.
Key Features:

304 Stainless Steel Blast Tube 3x18" 2LBS
304 Stainless Steel Base Container 12" diameter by 12" tall
304 Stainless Steel Heavy Duty Ball Valves
2 pc insight glass
System Rated to 100PSI for blasting
Multiple port connections for " ACME

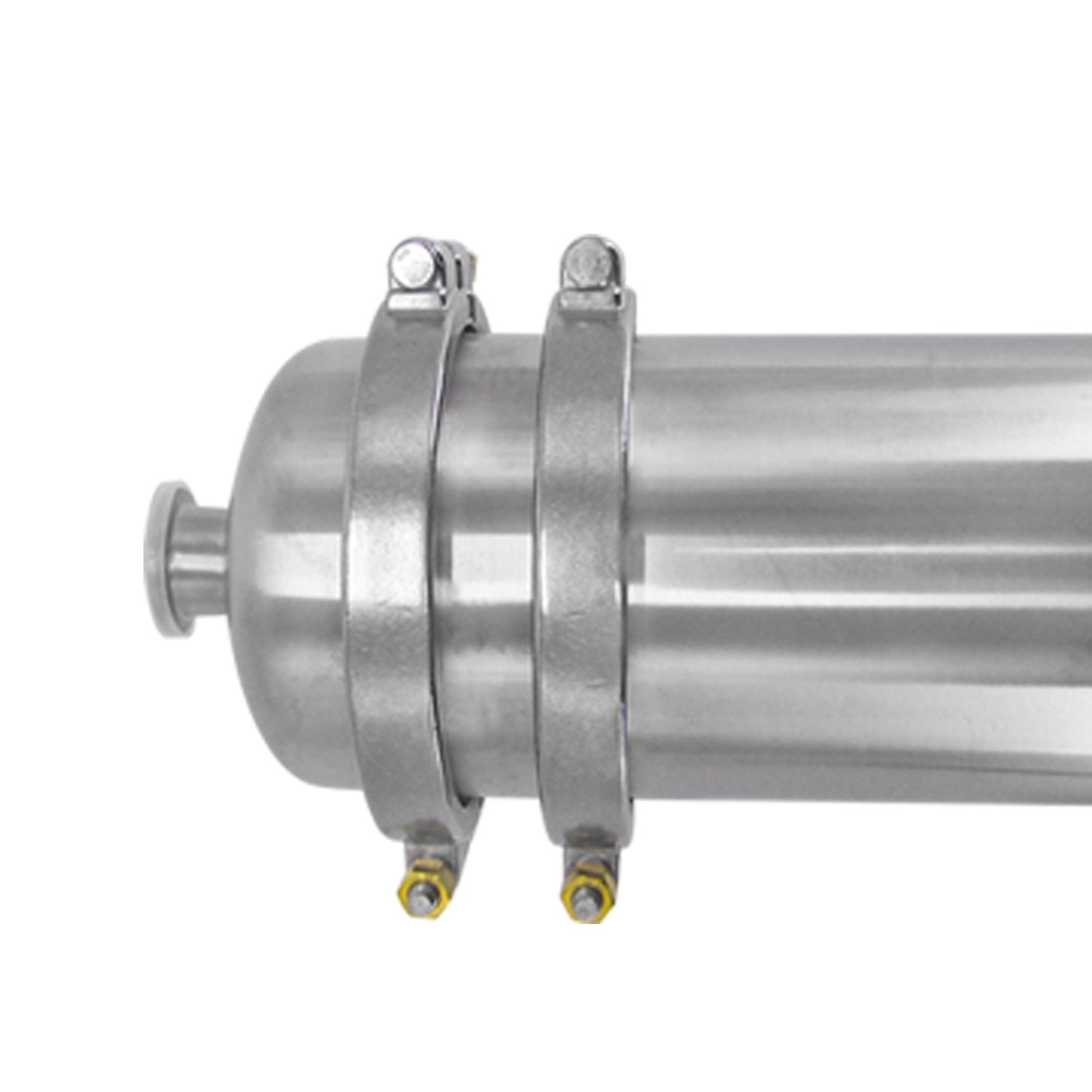

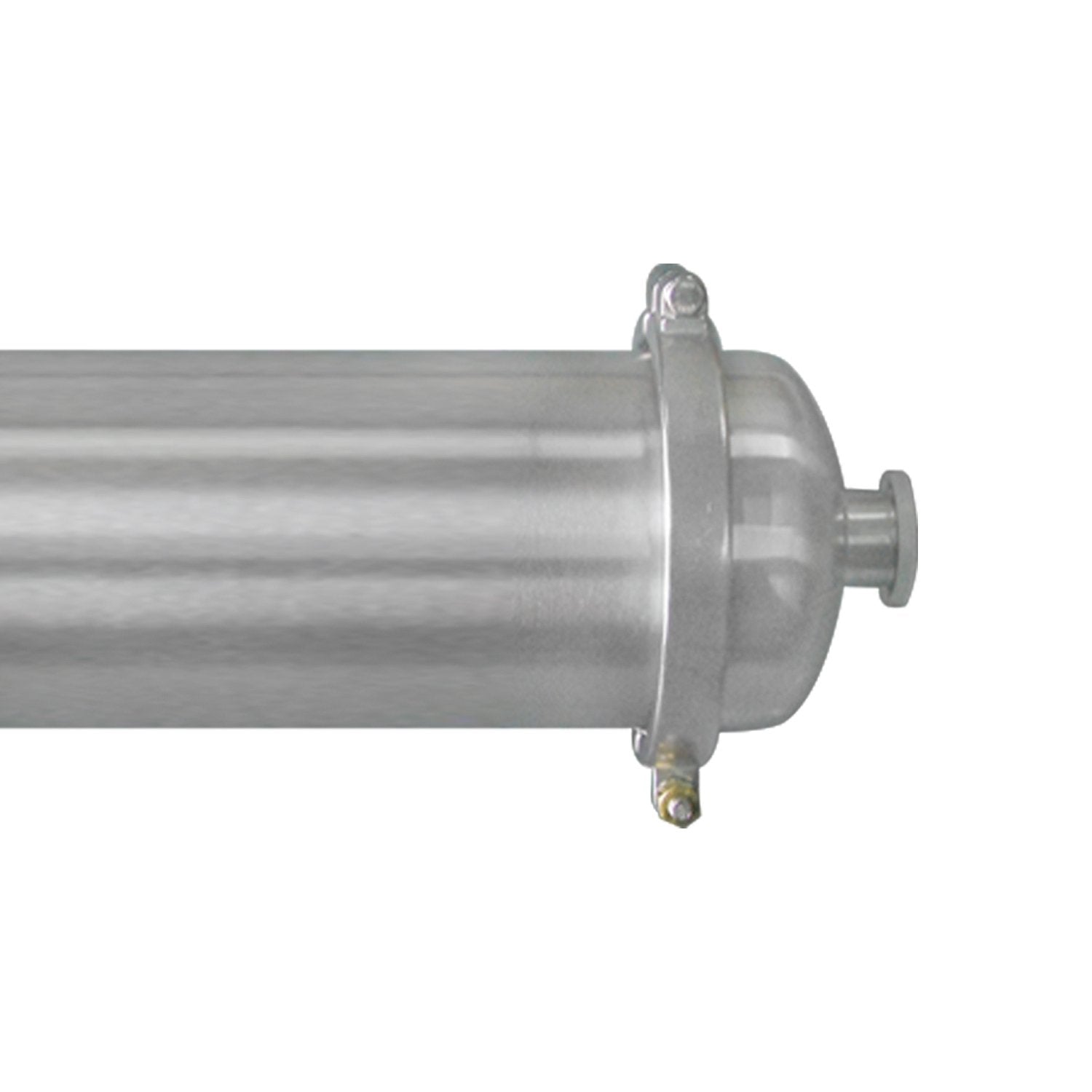

Vacuum clamps at all interfaces make for a high pressure, easy clean unit.
1 pc Vacuum gauge

Dimensions (Inches): 25" x 7" Diameter overall size
Weight: 21 lbs.
Operating Temperature Range: 0C (32F) to 72C (160F)
Ultimate Vacuum: as low as 10 Microns
Base unit Maximum Capacity: 155 cubic inches, (2.553 Liters)
Construction: All components made of 304 Stainless Steel.
Intake Fittings: " ACME Vacuum Fittings
Max Vacuum -29.9inHg
High Polish Interior base



Features: Material Column
Material: Stainless Steel
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Connection Type: MJIC

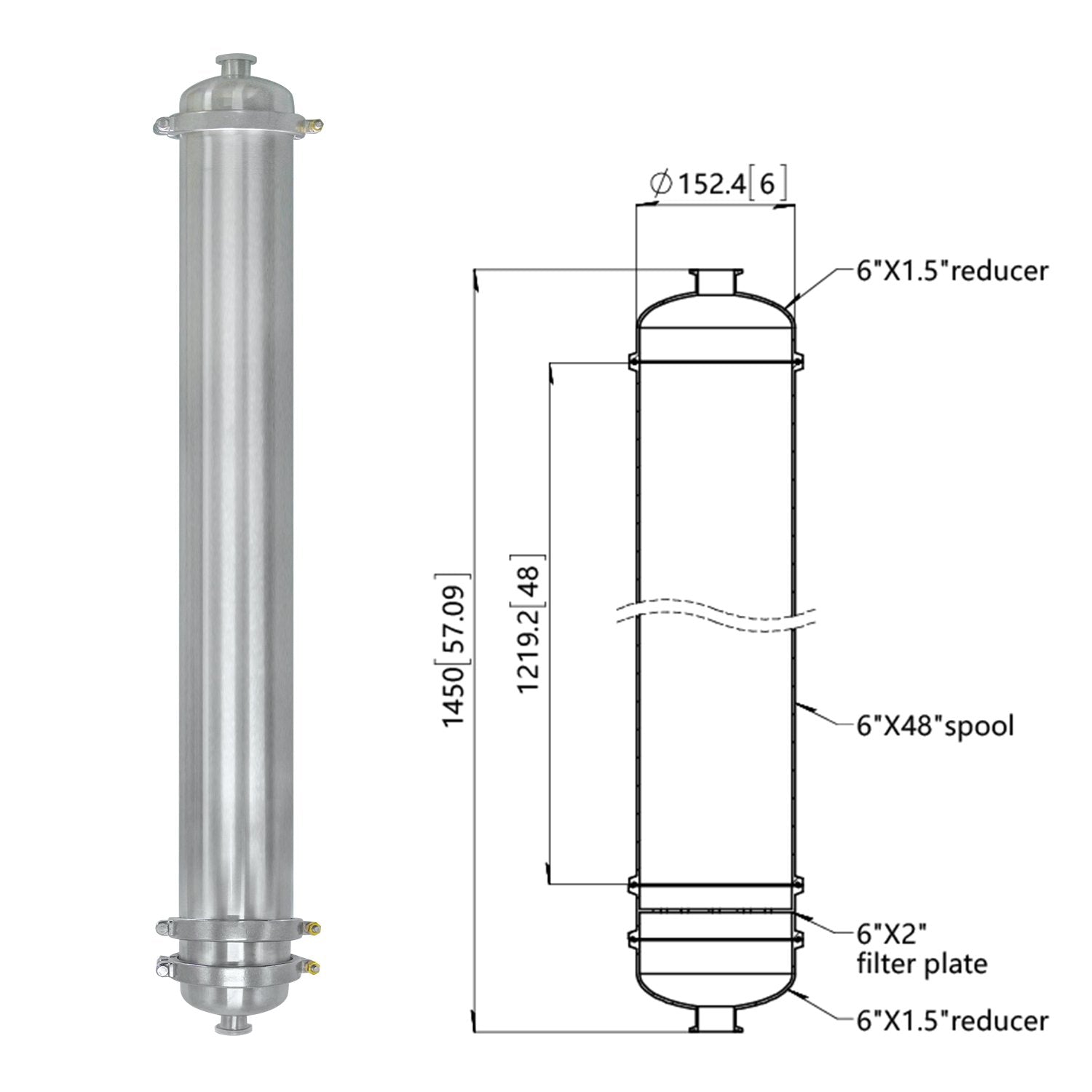

Specifications: Material Column
Diameter (IN): 6
Height (IN): 60
Radius (IN): 3
Volume (Cu In): 1695.6
Butane Capacity (LBS): 30.00 - 37.50
Propane Capacity (LBS): 23.75 - 29.69
Biomass Capacity (LBS): 8.75 - 12.50
Fluid Capacity (L): 27.76
Fluid Capacity (Gal): 7.34

"HFS uses testing methods that focus on pressure-dependent leaks and microleaks to ensure that all systems function as safe and efficient as possible.
We inject 100 PSI of AIR +  50 PSI NITROGEN and hold for 30-45 min.  "
