HFS(R) Vertical Storage Vessel

HFSSKU: EXA-REC-10X12IN

Size: 10x12"
Price:
$630

Description

SKU :EXA-REC-10X12IN
Material: Stainless Steel
Tri Clamp Lid Size (IN): 3
Liquid Line Connection (IN): FNPT 1/4
Vapor Line Connection (IN):  FNPT 1/4
Other Connections (IN): FNPT 1/4
Dual Bolt Clamp Size (IN): 3
Viton Gasket Size (IN): 3
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): 0
Jacket OD (IN): 0
Jacket Length (IN): 0
Specifications: Vessel
Diameter (IN): 10
Height (IN): 12
Radius (IN): 5
Volume (Cu In): 942.00
Fluid Capacity (L): 15.42
Fluid Capacity (Gal): 4.08
Butane Capacity (LBS): 16.67 - 20.83
Propane Capacity (LBS): 13.20 - 16.49
Biomass Capacity (LBS): 4.86 - 6.94
3A Sieve Capacity (LBS): 27.78
Nugget Ice Capacity (LBS): 22.22

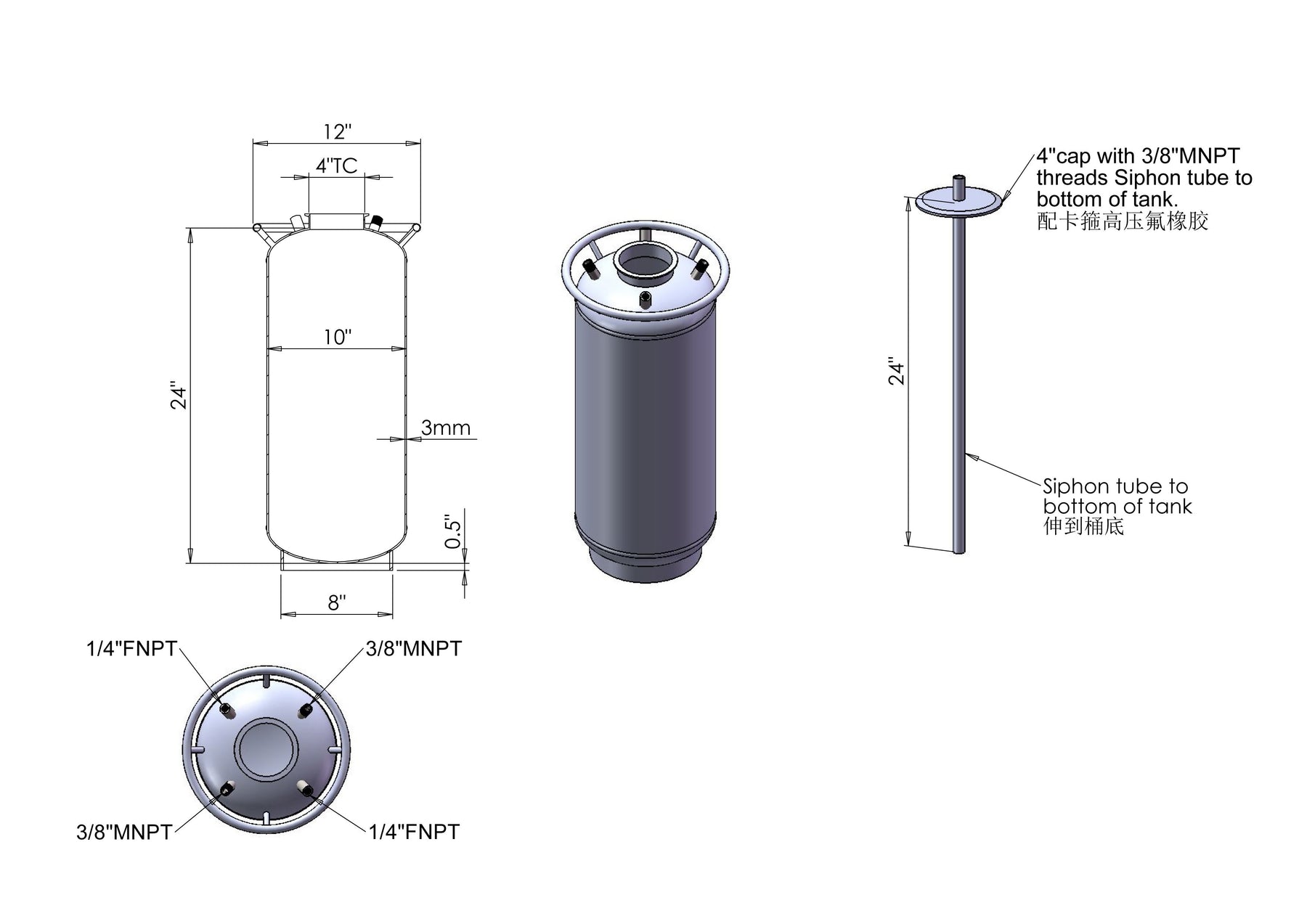

SKU :EXA-REC-10X24IN
Material: Stainless Steel
Tri Clamp Lid Size (IN): 4
Liquid Line Connection (IN): MNPT 3/8
Vapor Line Connection (IN):  2x MNPT 3/8
Other Connections (IN): 2x FNPT 1/4
Safety-Ring Size (IN): 12
Dual Bolt Clamp Size (IN): 4
Viton Gasket Size (IN): 4
Safety-Ring Size (IN): 12
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): 0
Jacket OD (IN): 0
Jacket Length (IN): 0
Specifications: Vessel
Diameter (IN): 10
Height (IN): 24
Radius (IN): 5
Volume (Cu In): 1884.00
Fluid Capacity (L): 30.84
Fluid Capacity (Gal): 8.16
Butane Capacity (LBS): 33.33 - 41.67
Propane Capacity (LBS): 26.39 - 32.99
Biomass Capacity (LBS): 9.72 - 13.89
3A Sieve Capacity (LBS): 55.56
Nugget Ice Capacity (LBS): 44.44
SKU :EXA-REC-12X14IN
Material: Stainless Steel
Tri Clamp Lid Size (IN): 6
Liquid Line Connection (IN): FNPT 1/4
Vapor Line Connection (IN):  FNPT 1/4
Other Connections (IN): FNPT 1/4 + Triclamp 1.5
Dual Bolt Clamp Size (IN): 6
Viton Gasket Size (IN): 6
Safety-Ring Size (IN): 14
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): 0
Jacket OD (IN): 0
Jacket Length (IN): 0
Specifications: Vessel
Diameter (IN): 12
Height (IN): 14
Radius (IN): 6
Volume (Cu In): 1582.56
Fluid Capacity (L): 25.91
Fluid Capacity (Gal): 6.85
Butane Capacity (LBS): 28.00 - 35.00
Propane Capacity (LBS): 22.17 - 27.71
Biomass Capacity (LBS): 8.17 - 11.67
3A Sieve Capacity (LBS): 46.67
Nugget Ice Capacity (LBS): 37.33

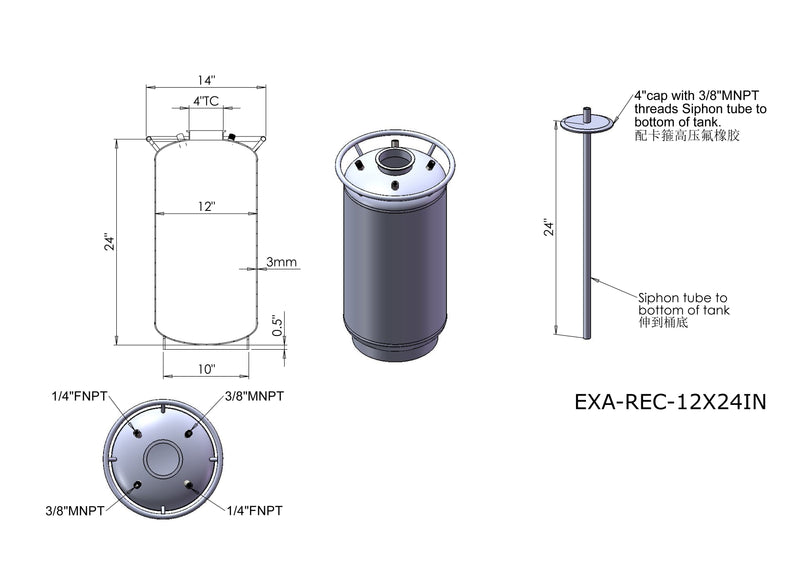

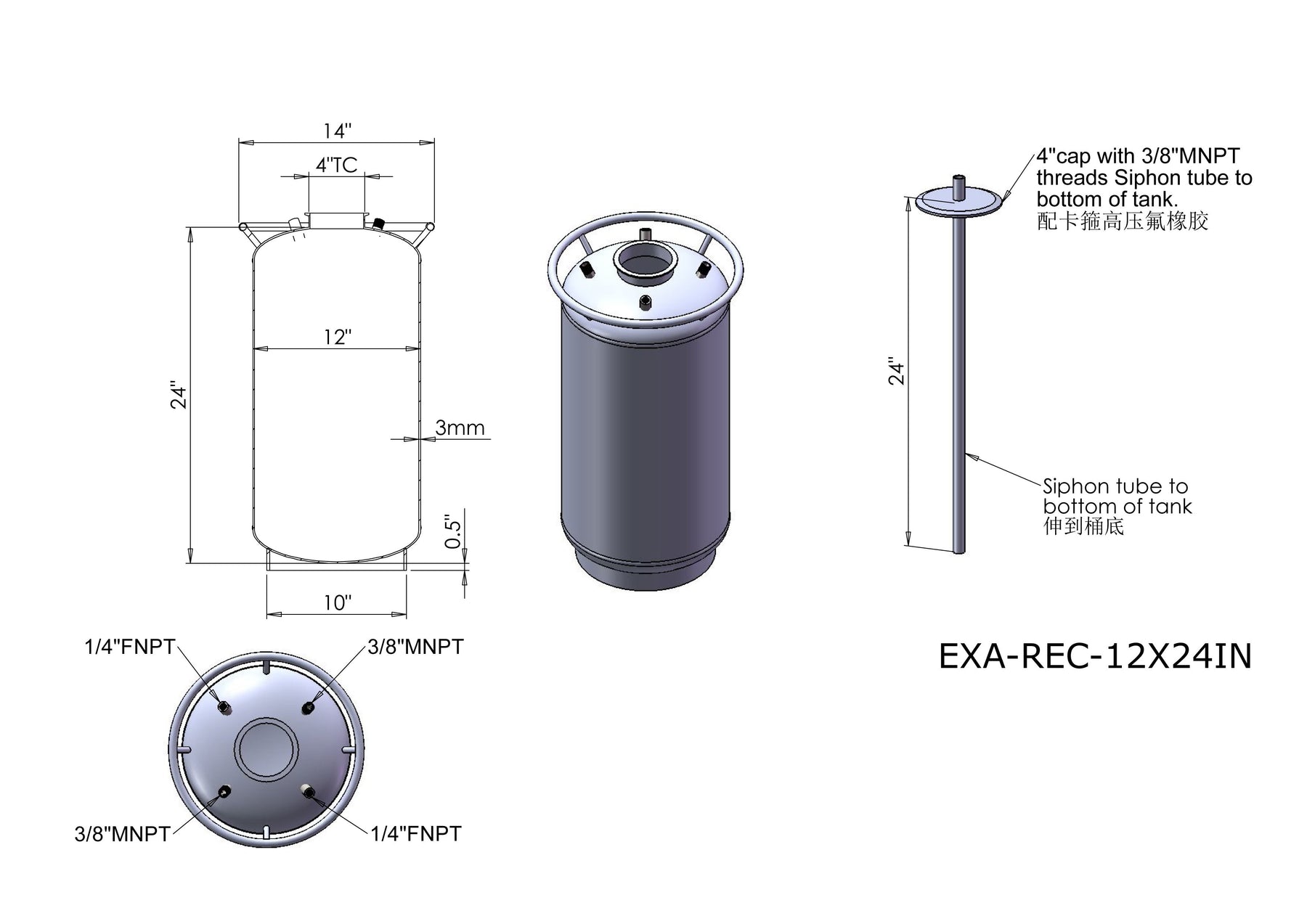

SKU :EXA-REC-12X24IN
Material: Stainless Steel
Tri Clamp Lid Size (IN): 4
Liquid Line Connection (IN): MNPT 3/8
Vapor Line Connection (IN):  2x MNPT 3/8
Other Connections (IN): 2x FNPT 1/4
Dual Bolt Clamp Size (IN): 4
Viton Gasket Size (IN): 4
Safety-Ring Size (IN): 14
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): 0
Jacket OD (IN): 0
Jacket Length (IN): 0
Specifications: Vessel
Diameter (IN): 12
Height (IN): 24
Radius (IN): 6
Volume (Cu In): 2712.96
Fluid Capacity (L): 44.42
Fluid Capacity (Gal): 11.75
Butane Capacity (LBS): 48.00 - 60.00
Propane Capacity (LBS): 38.00 - 47.50
Biomass Capacity (LBS): 14.00 - 20.00
3A Sieve Capacity (LBS): 80.00
Nugget Ice Capacity (LBS): 64.00
