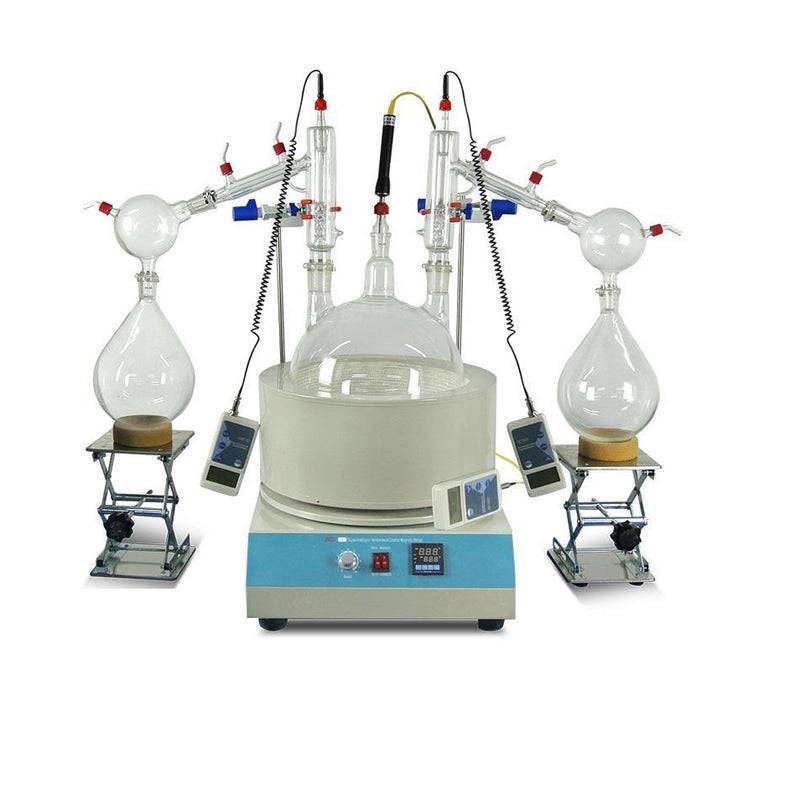

HFS(R) 20L Short Path Dual Head Complete Turnkey Deluxe Package,

Product Code: KIT-DIST-20-DH-DX

Availability:Out of stock

$18,500.00 18,500.00
Capacity: 20L = 6600- 12200 grams
Run time: 4 to 8 hours dependent upon material composition and throughput
Distillation Temperature Range: 140-250C
----------
Components
Mantle: 20L Digital Mantle 300°C, 2000 RPM
Circulator: Polyscience 7 Liter Heated Circulator Ambient +10° to 200°C
Pump: Welch DIREC DRIVE VACUUM PUMP, 22.8 CFM X 0.2 MICRONS, 115V/60HZ, *230V
Filter:  KF16 x KF25 Oil Mist Filter
Pump: Vacuum Pump 12 CFM DOUBLE STAGE 1HP 288l/min -110V - 1/4" SAE Fitting
Filter: HFS Complete Oil Mist Filter Kit, 3/4" x KF40
Pump Manifold: KF25 4way Distillation Manifold with Elbow
Insulator: Insulating Top, 650C
Support: Lattice Rack Kit, 6 ft
Tubing: 3/8" Silicone Tube, 25ft
Condenser Support: HFS Boss Head Clamp, British Style with 3-prong Condenser Clamp
Cold Element: Polyscience, IP-60 Immersion Probe Cooler, -60-to -20
Cold Trap: HFS 2L Turnkey Cold Trap Dewar Condenser Kit, 35/20 Ball Joint
• HFS 2L Cold Trap Dewar Condenser, 35/20 Ball Joint
• HFS 2L 1 Neck Round Bottom Flasks – 35/20 Center Joint
• HFS PTFE Cold Trap Lid, 2L
• HFS Lab Stand and Rod Set, 11.8x7x26" (LxWxH)
• HFS Boss Head Clamp, German Style
• HFS Lab Chain Clamp, 40mm-145mm Capacity
• Support Ring with Boss Head Clamp, 120mm
• Ball Joint Pinch Clamp #35
• Cork Stand, 120mm, for 500ml-3000ml (3L) Flask, Single (1) PCS
• HFS Lab Jack, Stainless Steel, 6x6x10”
• GL-18 with 3/8” Straight Hose Barb Adapter
----------
Distillation Glassware
• Boiling Flask: HFS 20L 3 Neck Borosilicate Round Bottom Flasks - 34/45, 24/40, 34/45
• Short Path Head: (2) 300 MM Distillation Head with Large ID, 34/45, 24/40, 34/45
• Distributor: (2) Single Cow Distribution Adapter, 34/45, 34/45, GL18
• Receiving Flask: (2) HFS 5L 1 Neck Round Bottom Flasks - 34/45 Center Joint
• Feeding Tool:  HFS Glass Feeding Funnel with 6" Opening, 24/40
• Thermal Adapter: (3) 24/40
• Plug: Hexagonal Glass Stopper, (2) 24/40, and (2) 34/45
• Metal Keck Clips: (1) 24/40 and (4) 34/45
• Plastic Keck Clips: (2) 34/45
• Connectors: (6) GL-18 with 3/8” Straight Hose Barb Adapter
• Cork Stand: (3) Cork Stand, 140mm, for 1000ml (1L) -5000ml (5L)
• Scissor Jack:  (2) Lab Jack, Stainless Steel, 12x12x15”
• Joint Lubricant: Apiezon PFPE 501, 100g tube
• Thermometer: (2) KANGAROO TRACEABLE THERMOMETER, -50-300°C (-58.0-572.0°F)
